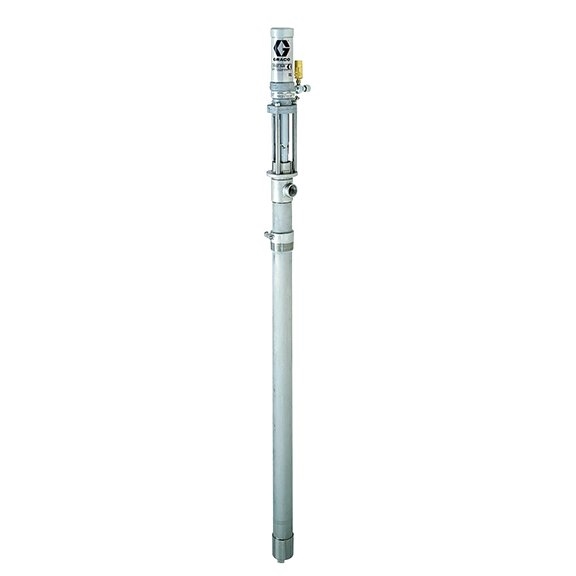

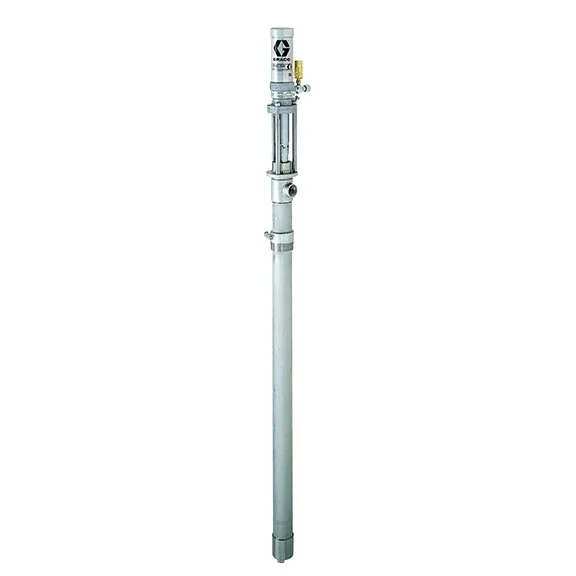

1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with PE Packing
Part Number: 226941
$2,020.00
633955295742
Description
Industrial Pumps – PRO . Piston . Fast-flo Piston
Graco 226941 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with PE Packing, Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.,
Features
Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.
Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.
Manual: 307456;307427
Air-powered for high reliability and low cost
Delivery up to 5 gpm (19 lpm)
Available in stainless steel or carbon steel
UL options available when installed in accordance with NFPA
More info can be found at
https://www.graco.com/us/en/in-plant-manufacturing/product/226941-fast-flo.html
Additional information
| Weight | 18 lbs |
|---|---|
| Dimensions | 54 × 4.8 × 4.8 in |
