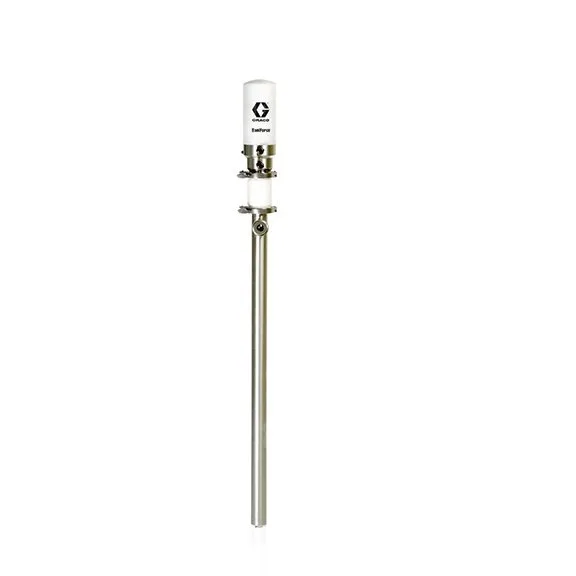

2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with PTFE & FKM Packings

Part Number: 24R047

Description

Industrial Pumps – PRO . Piston . Saniforce & Monark Piston

Graco 24R047 2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with PTFE & FKM Packings, Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco’s SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.,

Features

Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications

Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco’s SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.

Manual: 3A2977

SaniForce 2:1 Sanitary Piston Pump:
– Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
– Quick disconnect clamps for easy disassembly
– Fluid transfer and supply of materials up to 50,000 cps
– Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics

Easy Mounting:
– SaniForce 2:1 pump fits through standard bung hole
– FDA-compliant bung adapter accessory available for easy mounting

More info can be found at

https://www.graco.com/us/en/in-plant-manufacturing/product/24r047-saniforce.html
