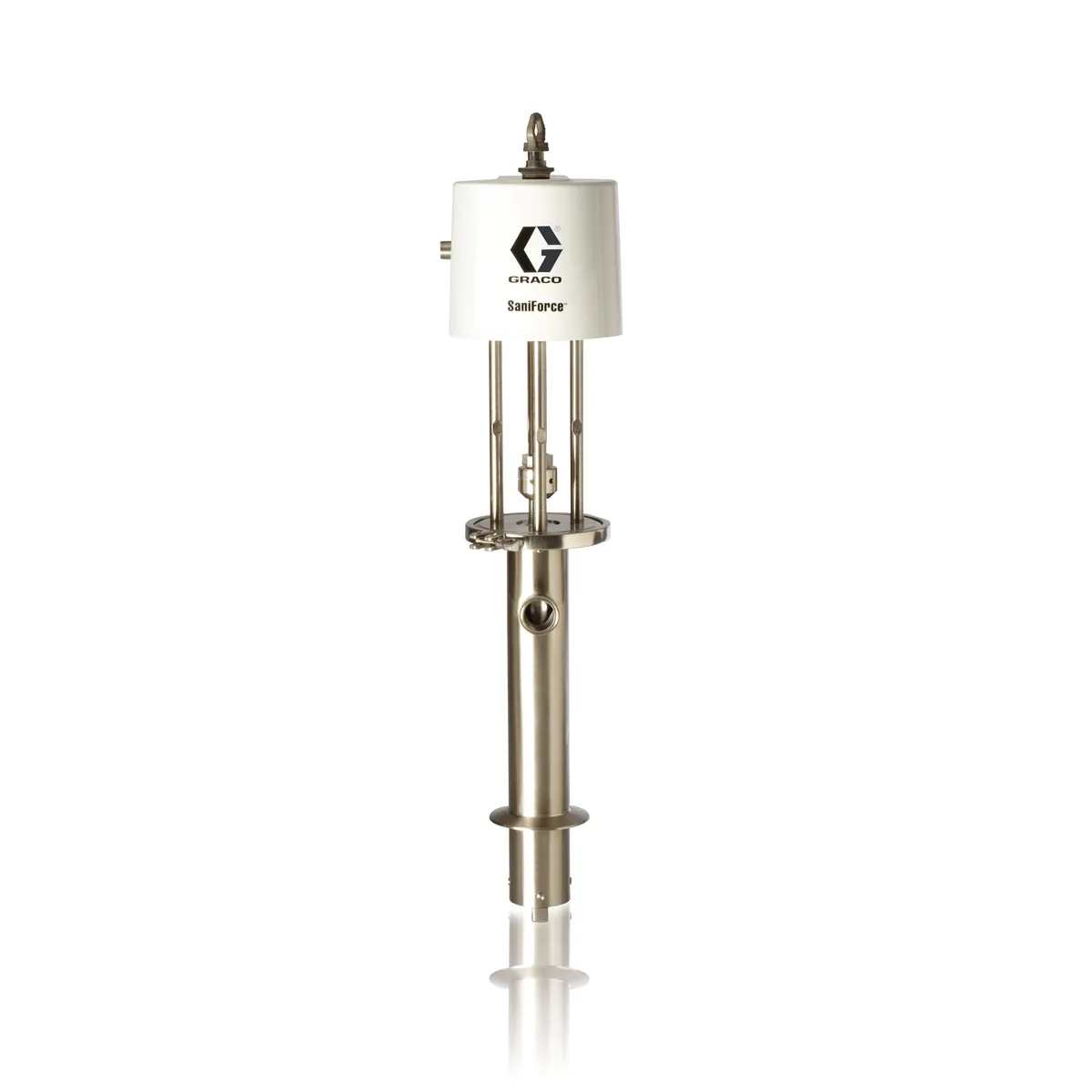

5:1 Ratio SaniForce Double Ball Stubby Piston Pump with 4 in Tri-Clamp Inlet
Part Number: 24F197
$35,280.00
633955604162
Description
Industrial Pumps – PRO . Piston . Saniforce & Monark Piston
Graco 24F197 5:1 Ratio SaniForce Double Ball Stubby Piston Pump with 4 in Tri-Clamp Inlet, The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.,
Features
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Manual: 3A0734
Available in double-ball and priming piston designs
Fluid transfer and supply of low to medium viscosity fluids
Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
FDA-Compliant Shroud:
– Easily removable FDA-compliant shroud to clean and access modular air valve – reducing downtime
– Most advanced air motor on the market
– Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
More info can be found at
https://www.graco.com/us/en/in-plant-manufacturing/product/24f197-saniforce.html
