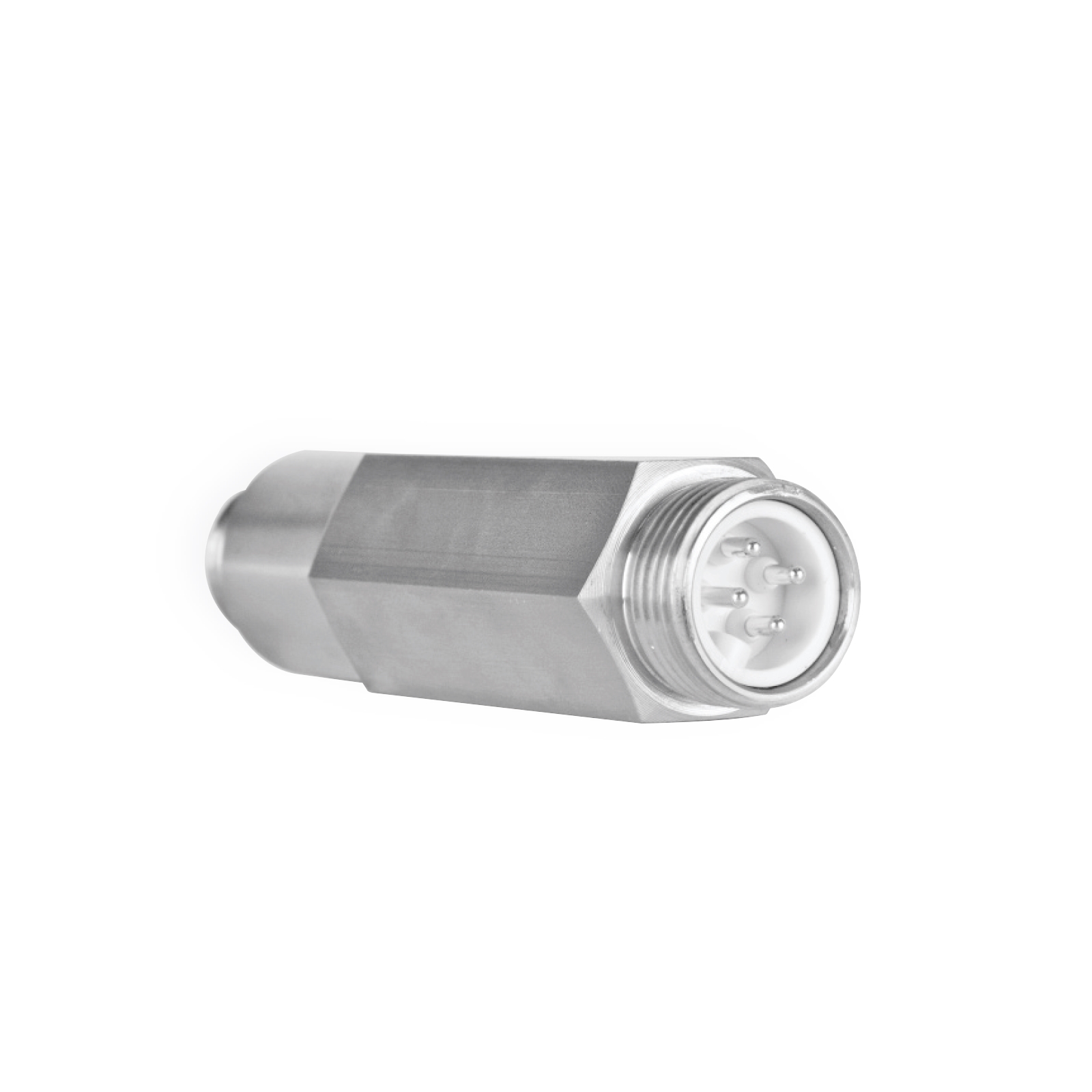

Field Sensitive Magnetic (FSM) Proximity Switch for MSP and MHH divider valves, 4 pin CH connector

Part Number: 557747

Description

Lubrication Equipment – LED . Trabon Divider Valves . Switches & Sensors

Graco 557747 Field Sensitive Magnetic (FSM) Proximity Switch for MSP and MHH divider valves, 4 pin CH connector, A proximity switch is a magnetically operated sensing device used to detect cycles of a Series Progressive Divider Valve.,

Features

Install a proximity switch in place of a piston enclosure plug to allow a PLC or lubrication controller to monitor cycles of the divider valve assembly.

A proximity switch is a magnetically operated sensing device used to detect cycles of a Series Progressive Divider Valve.

Manual: 313230

O-ring sealed proximity switch for Trabon MSP and MHH divider valves.

Compatible with 24 VDC and 110/240 VAC

4 pin CH electrical connector mates to 12 ft (3.66 m) cable 558025 (straight) and 558026 (90º)

UL and CSA Approved – search their respective website for the certifications or contact Graco Technical Assistance

More info can be found at

https://www.graco.com/us/en/vehicle-service/product.557747.html
