MSP and MHH Divider Valves – Visual Cycle Indicator

Part Number: 563251

Description

Auto-Lubrication – ALE . Trabon Divider Valves . Indicators & Blowout Disks|Lubrication Equipment – LED . Trabon Divider Valves . Indicators & Blowout Disks

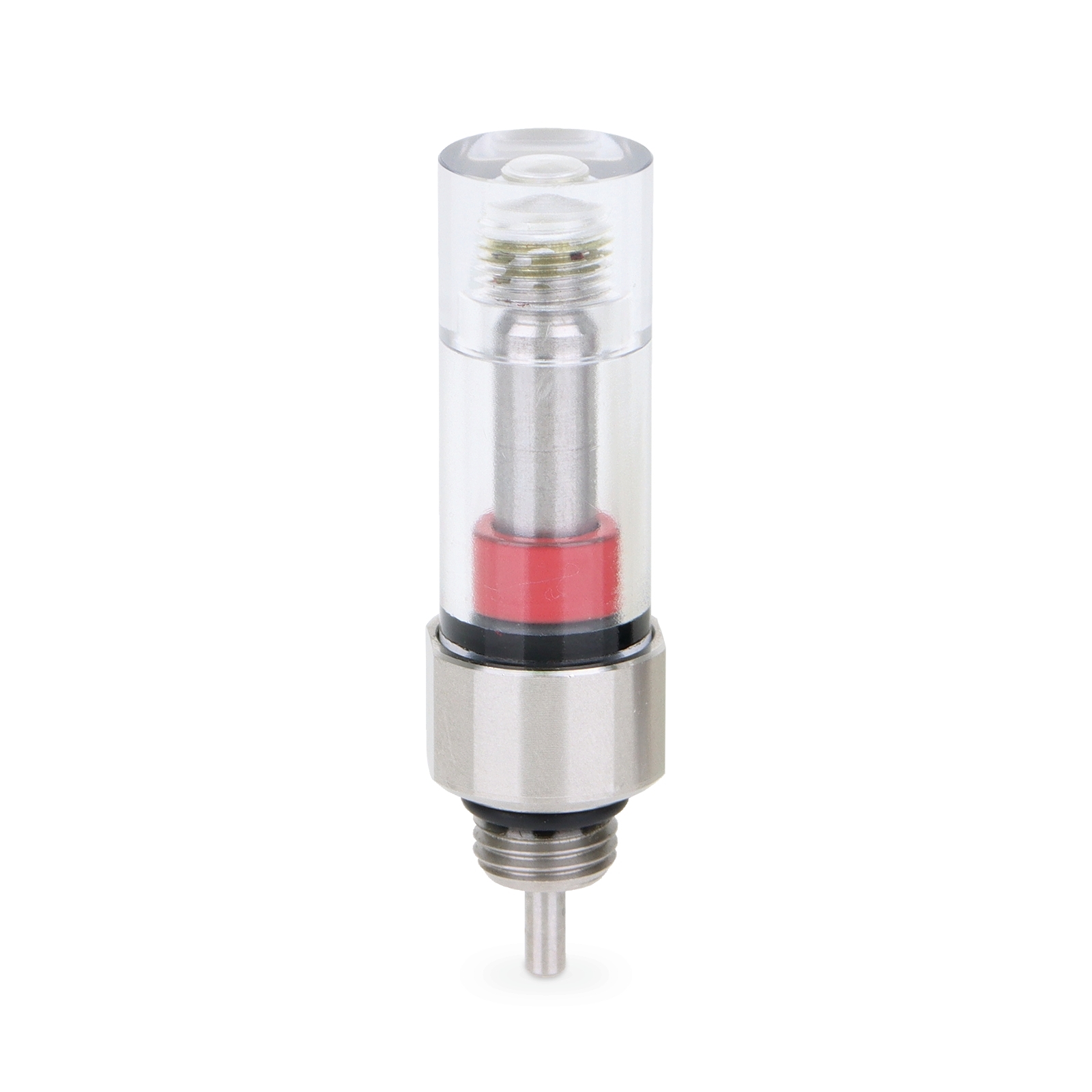

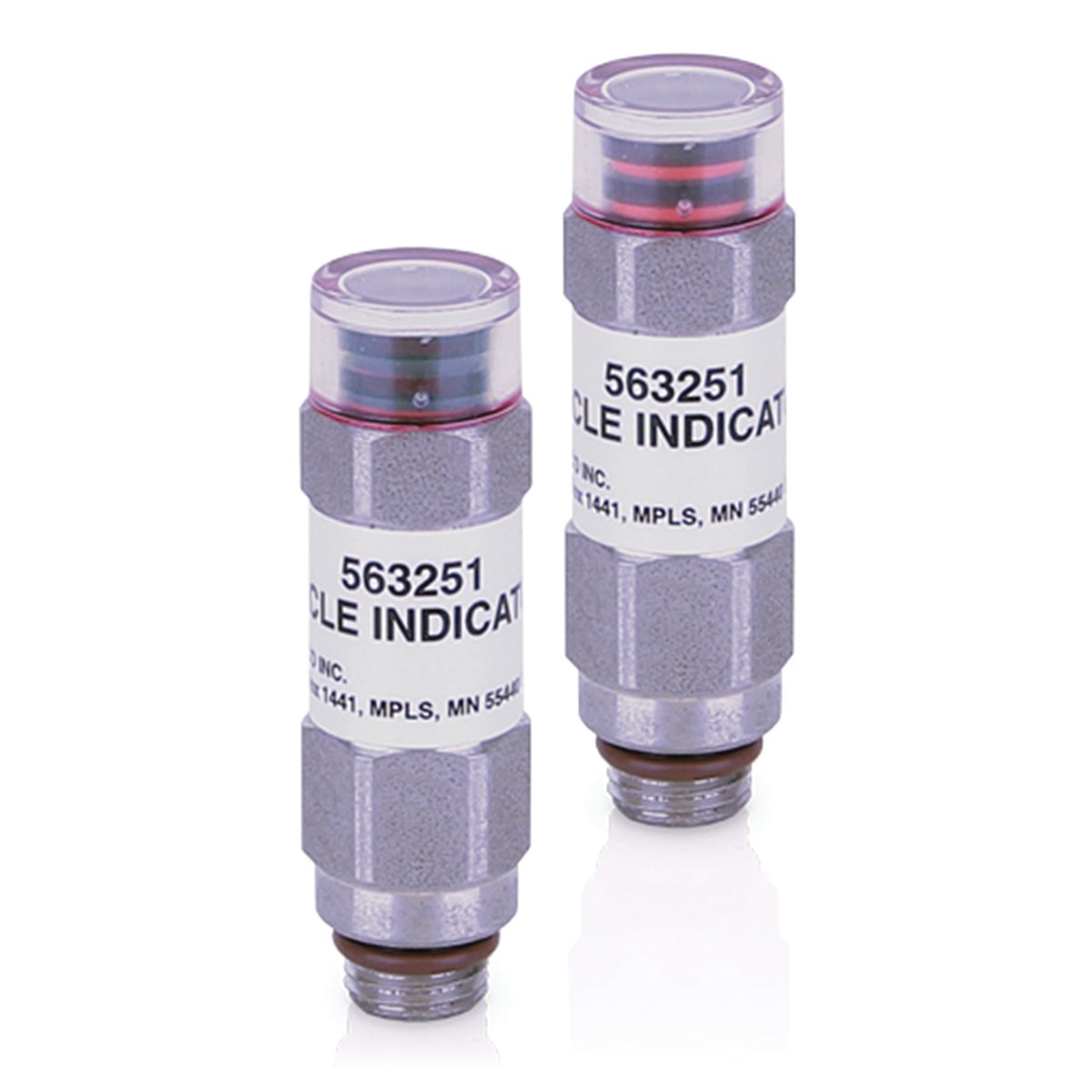

Graco 563251 MSP and MHH Divider Valves – Visual Cycle Indicator, The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.,

Features

For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar).

The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.

Manual: https://www.graco.com/us/en/search.html?q=3A9274

Makes physical contact with valve piston

Polycarbonate housing allows for clear view of red indicator ring

All parts are captured

FKM o-ring seal for broad compatibility with synthetic oils and greases

More info can be found at

https://www.graco.com/us/en/vehicle-service/product/563251-msp.html
