RoadLazer RoadPak HD System, Option HD2

Part Number: 25D281

Description

Paint Sprayers – CED . Line Stripers . Line Striper Accessories

Graco 25D281 RoadLazer RoadPak HD System, Option HD2, The RoadPak HD is a high-productivity striping machine with double the output, the ability to stripe with 5 or more guns and many other upgrades that will increase your productivity and line accuracy.,

Features

Option HD2 is a truck-mounted system featuring a 2-pump RoadPak HD Pump System with a 1,350 pound Bead Tank, 2 Pump 3-Gun RoadPak HD Gun Arm, RoadView HD Camera System, Advanced Controller, Simple Guide System, and Gun Lift Winch Kit.

The RoadPak HD is a high-productivity striping machine with double the output, the ability to stripe with 5 or more guns and many other upgrades that will increase your productivity and line accuracy.

Manual: 3A5384;3A5385;3A5386;3A5387;306861

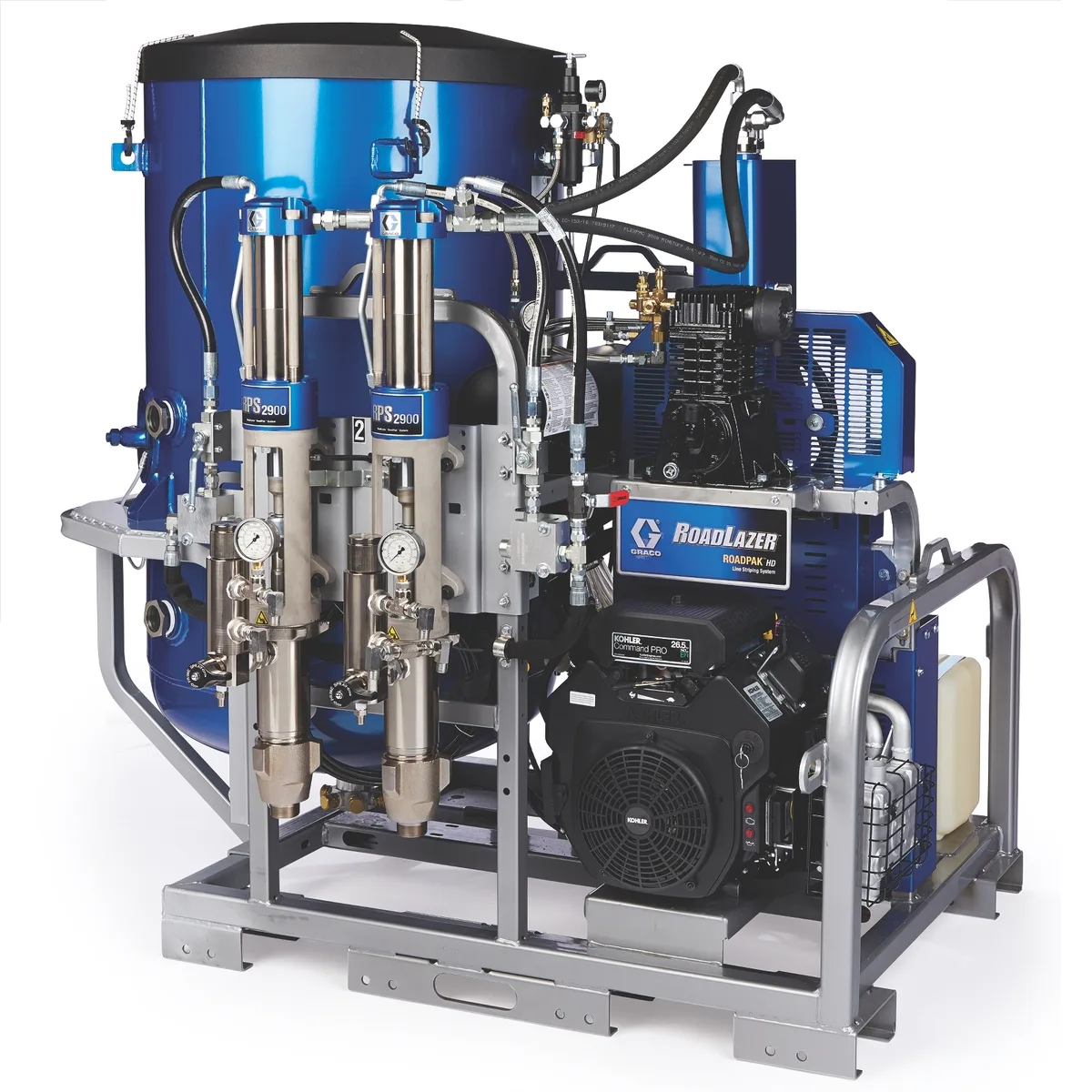

RoadPak HD 2-Pump System
– Higher performance with double the output up to 37.9 LPM (10 GPM)
– Heavy-Duty RPS 2900 Hydraulic System
– No-stall design provides unmatched productivity
– Maximum pressure of 200 bar
– Proven Displacement Pump System
– Delivering outstanding results in pumping paint for decades
– Prime valve allows you to recirculate paint keeping it mixed and ready to go
– Bead Tank System
– ASME rated and can drop at a rate of up to 18 kg per minute
– Easier material loading with large fill spout opening

RoadPak HD 2-Pump/3-Gun Arm
– Fast set-up, high output
– 5+ Gun capacity: 5 spray Guns and 5 bead Guns
– EasyMark Gun Adjustment System
– Simple guide mark system
– Easy gun on/off
– Perfect gun alignment every time

Advanced Controller
– Less Setup Time
– Built-in advanced patterns for quick recall
– Pattern preview gives a quick visual of colors and patterns selected
– Export capabilities allows for “proof of job”

Heavy-Duty Modular Frame System
– Heavy-duty steel frame is built to last
– Simple to add the options you want in minutes – optimizing your striping system
– Small frame size allows it to fit almost anywhere – from the back of a pickup or flatbed truck to the bed of a utility vehicle
