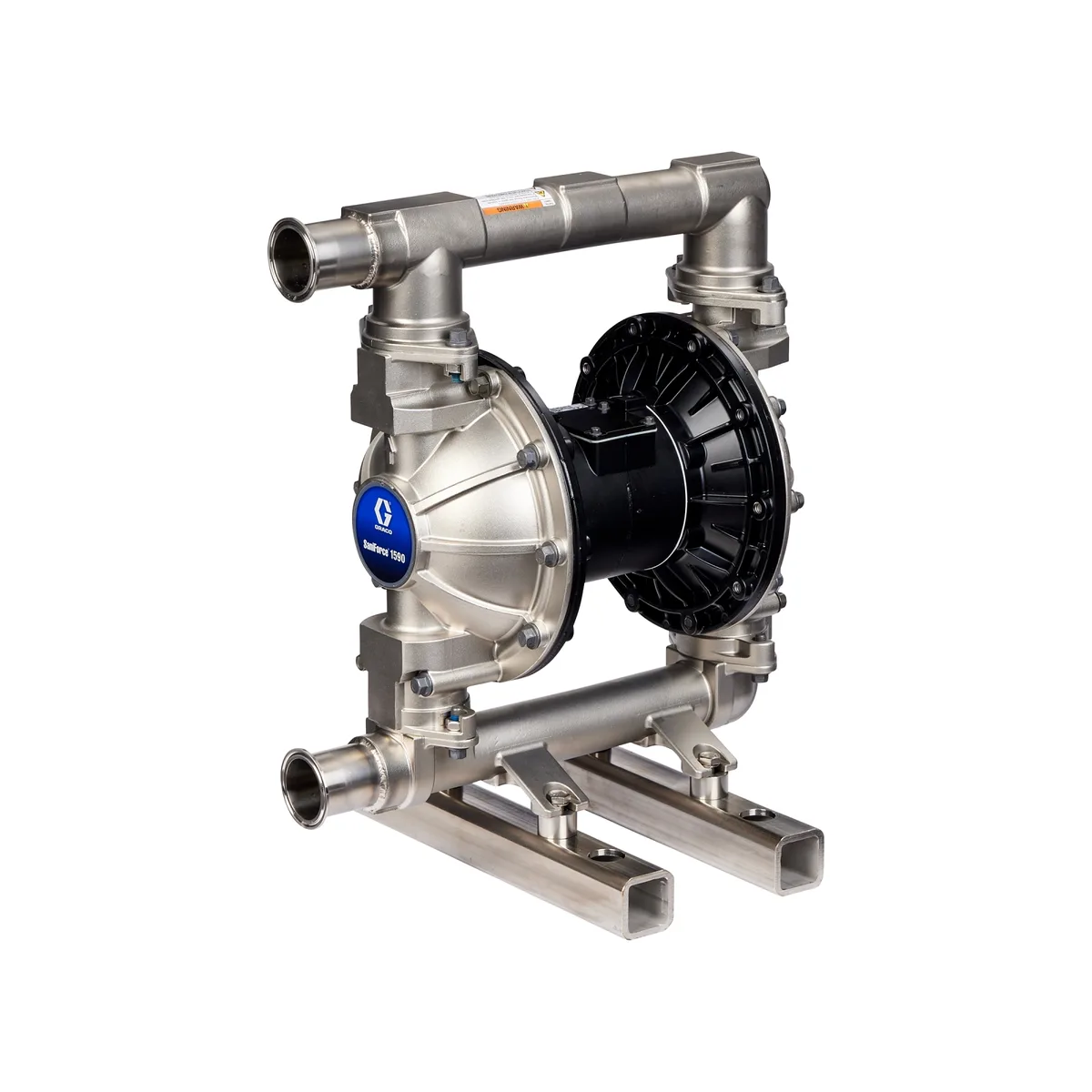

SaniForce 1050 Beverage Pump, 1″ FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms

Part Number: 26D635

Description

Industrial Pumps – PRO . Sanitary . Saniforce Diaphragm

Graco 26D635 SaniForce 1050 Beverage Pump, 1″ FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms, With a simple, easy-to-service design and high-quality construction, the SaniForce Beverage Pumps deliver consistent flow and efficient operation, making them a trusted choice for wineries, breweries, distilleries, and other beverage transfer operations. An expansion on Graco’s proven air-operated double diaphragm pump technology, these pumps deliver exceptional reliability and durable performance.,

Features

The 1050 beverage pump delivers high performance with flow rates around 40 gpm and pressures of up to 120 psi. It can be mounted to a cart for additional flexibility to easily transfer material all around your facility, enabling efficient and reliable transfer and meeting your production demands.

With a simple, easy-to-service design and high-quality construction, the SaniForce Beverage Pumps deliver consistent flow and efficient operation, making them a trusted choice for wineries, breweries, distilleries, and other beverage transfer operations. An expansion on Graco’s proven air-operated double diaphragm pump technology, these pumps deliver exceptional reliability and durable performance.

Manual: 3A8983;313435;313598;313648;313840;332167;332168;332169;332170;332171;332172;332173;332174;332175;332176;332177;332178;332179;332180;332181;332182;332183;332184;332185;332186;332187;332188;333411;333412;334148;334149;334393;334394;334395;334396;334398;334401;334402;334403;334404;334405;334406;334407;334409;334412;334413;334414;334415;334416;334417;334418;334420;334423;334424;334425;334426;334427;334428;334429;334431;334434;334435;334436;334462;334463;334464;334465;3A0005;3A0410;3A0411;3A0549;3A0550;3A0551;3A0552;3A0553;3A0554;3A0555;3A0556;3A0557;3A0558;3A0559;3A0560;3A0561;3A0562;3A0563;3A0564;3A0565;3A0566;3A0567;3A0568;3A0569;3A0570;3A0571;3A0572;3A0624;3A0625;3A0626;3A0627;3A0628;3A0629;3A1328;3A1329;3A1330;3A2578;3A2714;3A2888;3A2889;3A4779;3A4780

Hygienic Design
– 1.5 in (38mm) Tri-clamp fluid connections
– All fluid contact components are FDA compliant
– Internal components include stainless steel seats, polychloroprene weighted balls, Santoprene diaphragms and PTFE o-rings
– EN 2.1 material certification

Strong Performance
– Flow rates up to 40 gpm (155 lpm)
– Fluid pressure to 120 psi (8.27 bar, 0.83 Mpa)
– Handles solids and abrasive materials
– Shear sensitive for safe transfer
