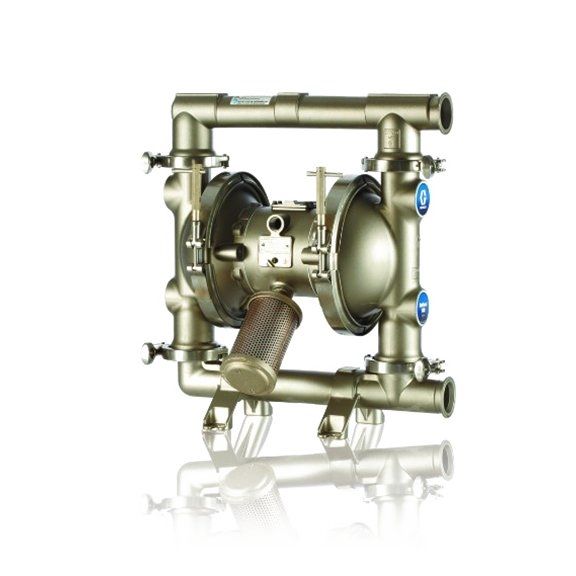

SaniForce 1590, 1.5″ FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms

Part Number: FD2113

Description

Industrial Pumps – PRO . Sanitary . Saniforce Diaphragm

Graco FD2113 SaniForce 1590, 1.5″ FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms, Graco’s SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.,

Features

Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.

Graco’s SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Manual: 311879

1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar)

Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves

Externally serviceable air valves deliver leading efficiency and reduce downtime.

More info can be found at

https://www.graco.com/us/en/in-plant-manufacturing/product/fd2113-saniforce-1590.html
