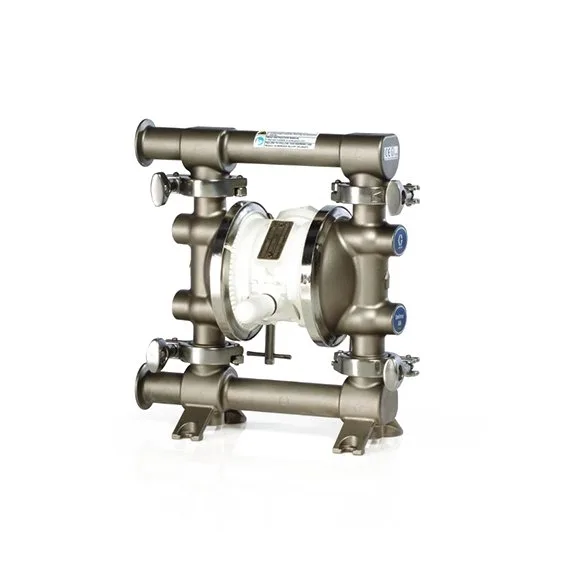

SaniForce 515, 1/2″ FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PO Diaphragms

Part Number: FD5113

Description

Industrial Pumps – PRO . Sanitary . Saniforce Diaphragm

Graco FD5113 SaniForce 515, 1/2″ FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PO Diaphragms, Graco’s SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.,

Features

Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps.

Graco’s SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.

Manual: 3A1973

1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar)

Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves

Externally serviceable air valves deliver leading efficiency and reduce downtime.
