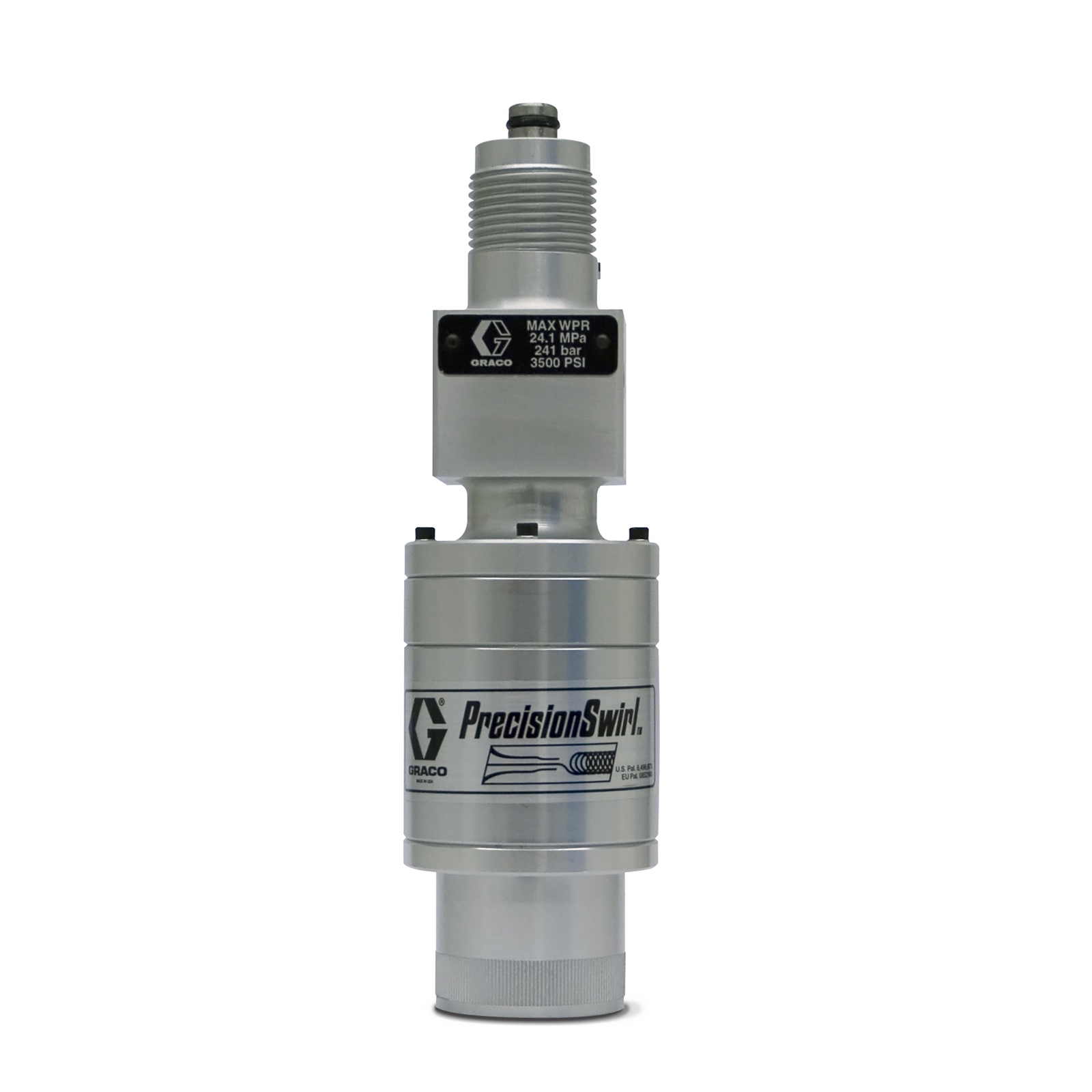

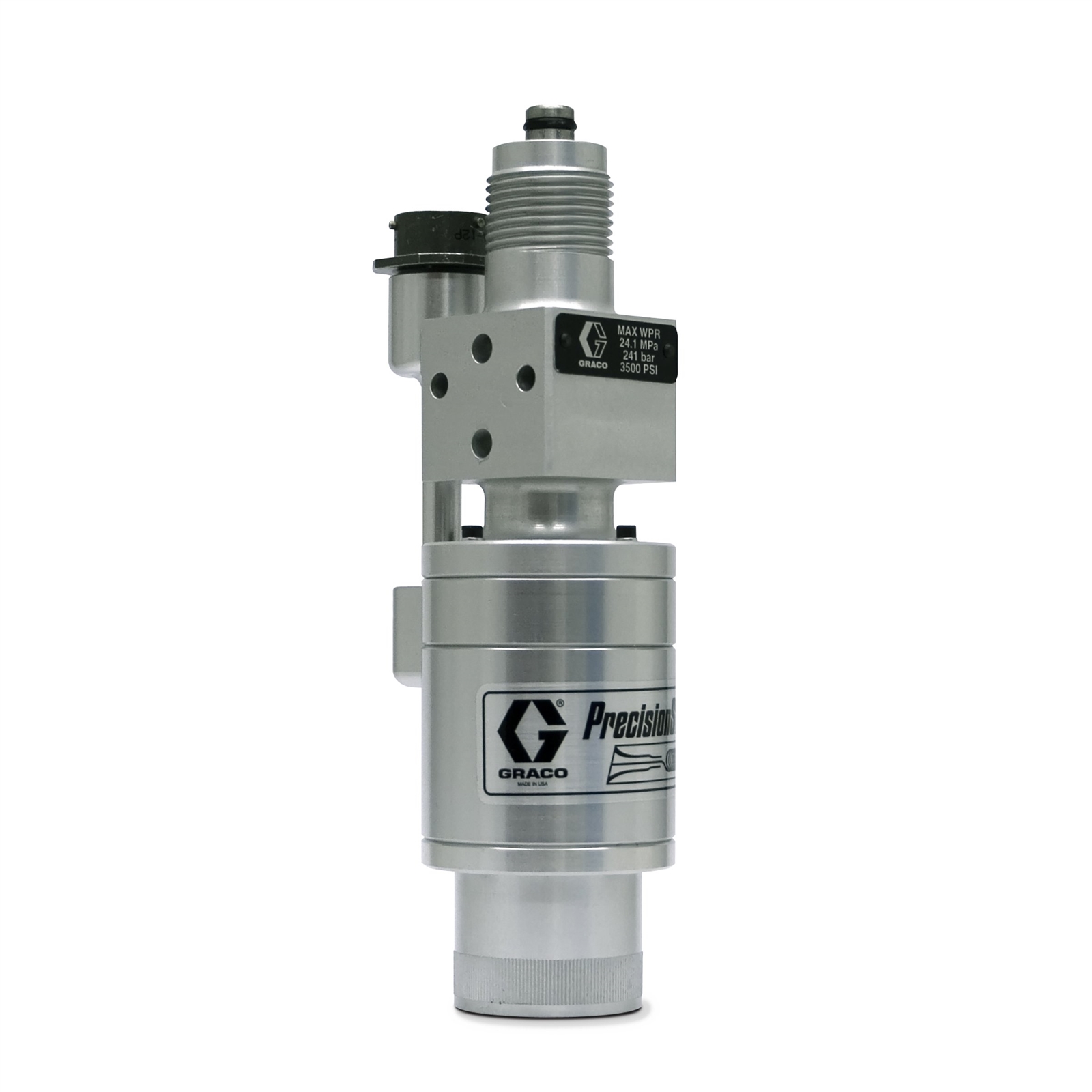

Standard PrecisionSwirl Orbital Dispenser, 0.012 in (0.3 mm) Coupler Offset for Smaller Bead Widths Typical for Hem Flange & After Hem

Part Number: 243402

Description

Finishing & Coating – IPD . Applicators . Applicators & Dispense Valves

Graco 243402 Standard PrecisionSwirl Orbital Dispenser, 0.012 in (0.3 mm) Coupler Offset for Smaller Bead Widths Typical for Hem Flange & After Hem, PrecisionSwirl features adjustable rotational speed, stand-off distance and flow rate for greater control and for better penetration on irregular shaped parts. It is compatible with most sealants including expandable sealers, heat cure epoxy and PVC plastisol.PrecisionSwirl produces no air turbulence so the bead profile is consistent over the bead length, reducing squeeze-out, repair and scrap. The applicator produces a wide variety of pattern widths, material thicknesses and patterns.,

Features

Applies a uniform swirl pattern in robotic applications

PrecisionSwirl features adjustable rotational speed, stand-off distance and flow rate for greater control and for better penetration on irregular shaped parts. It is compatible with most sealants including expandable sealers, heat cure epoxy and PVC plastisol.PrecisionSwirl produces no air turbulence so the bead profile is consistent over the bead length, reducing squeeze-out, repair and scrap. The applicator produces a wide variety of pattern widths, material thicknesses and patterns.

Manual: 309403

Delivers open bead or closed continuous bead patterns

Provides a circular loop swirl bead pattern

Swirl pattern has uniform bead profile and consistent edges

Increased tip standoff simplifies robot programming
