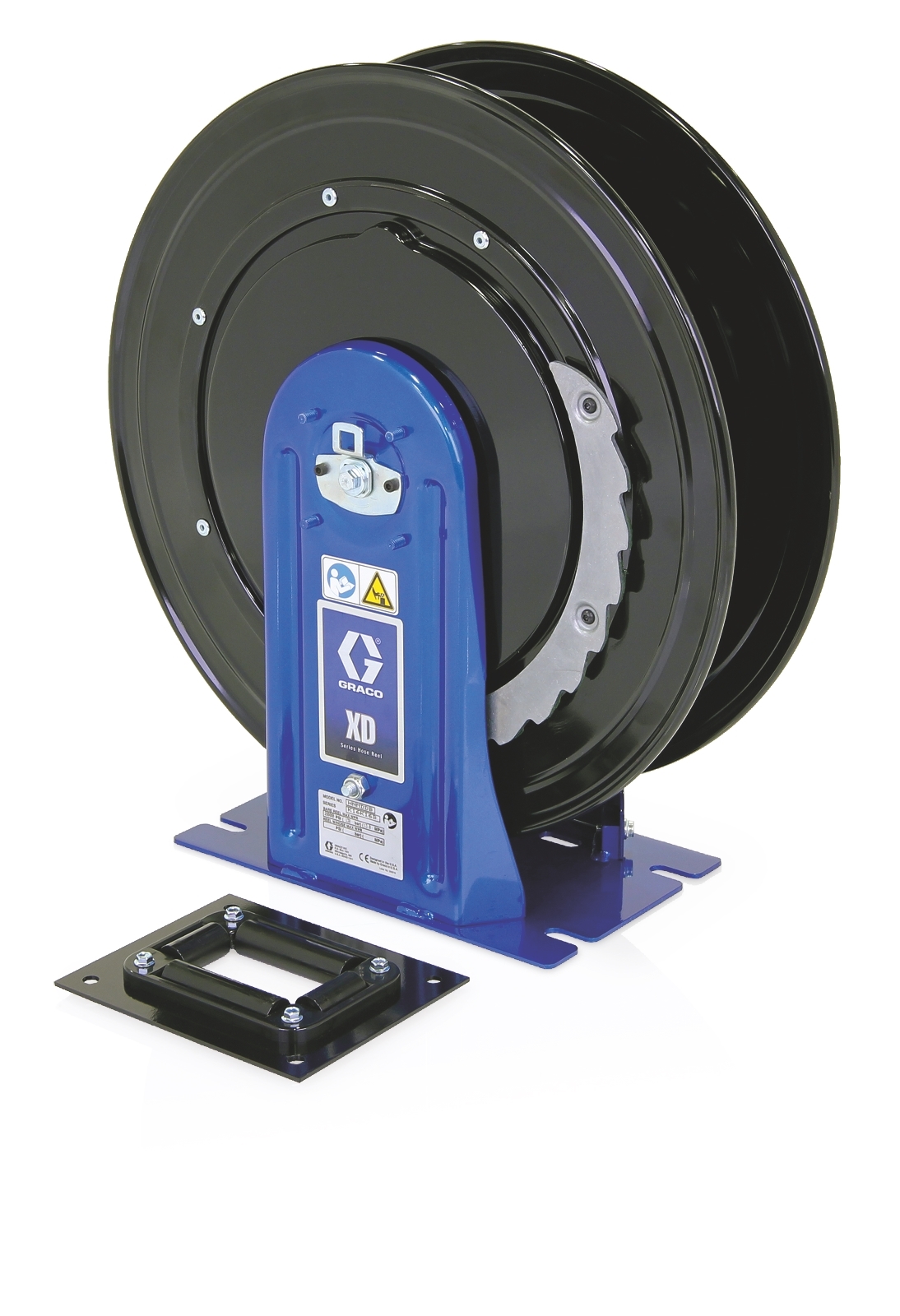

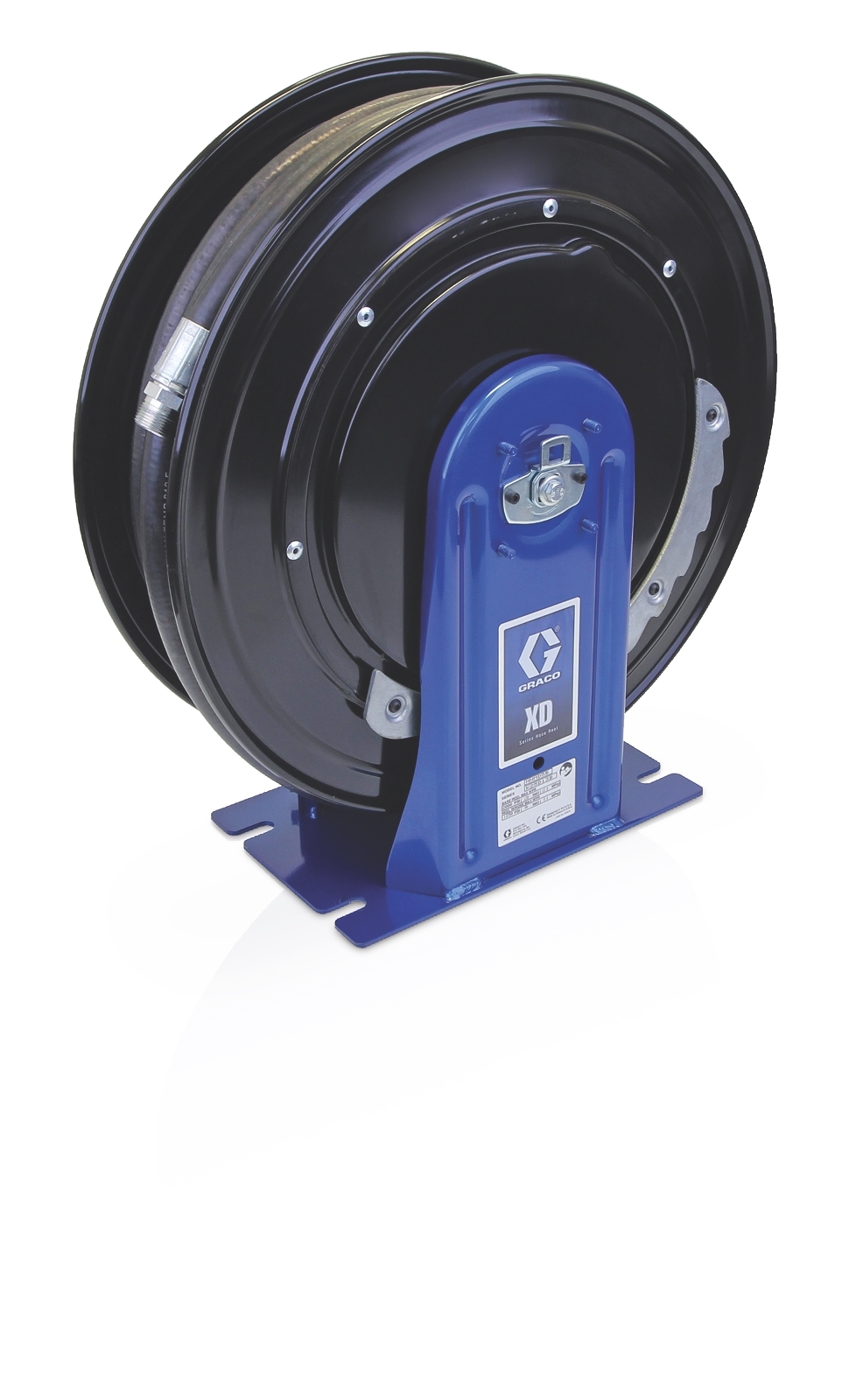

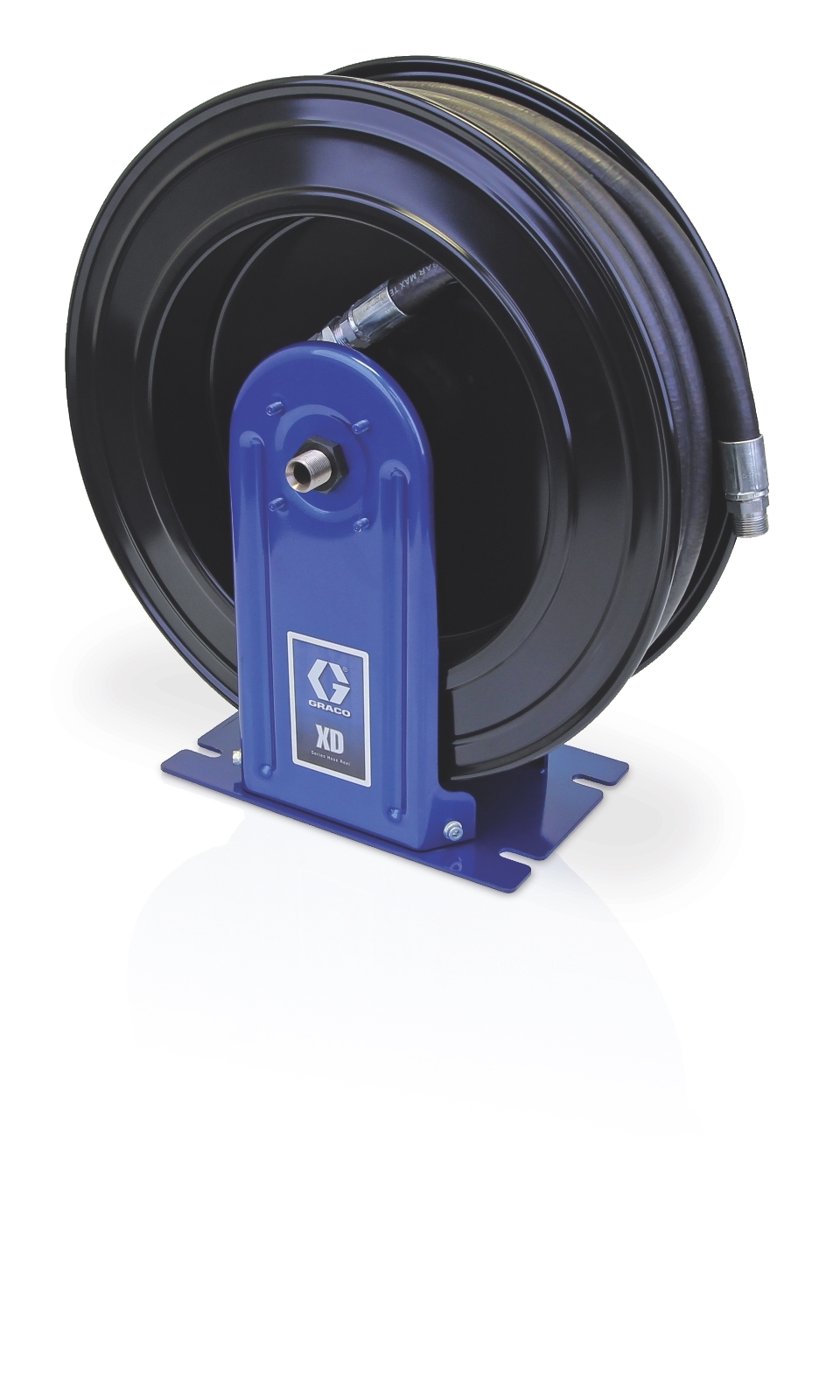

XD30™, Grease, 1/2 in. (13 mm) Inlet, Bare Reel (1/2 in. X 50 ft. (13 mm X 15 m) Capacity), NPT, Truck/Bench Mount, Metallic Blue

Part Number: HSHCDB

Description

Shop & Garage – VSE . Hose Reels . XD Series 30|Lubrication Equipment – LED . Hose Reels . XD Series 30

Graco HSHCDB XD30™, Grease, 1/2 in. (13 mm) Inlet, Bare Reel (1/2 in. X 50 ft. (13 mm X 15 m) Capacity), NPT, Truck/Bench Mount, Metallic Blue, Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).,

Features

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

Manual: 3A0138

Spring Adjustment – Increase or decrease spring tension while reel is pressurized with fluid

Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop

Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without (HN models)

Durable Finish – Baked-on enamel finish protects reel from corrosion
